Year: 2013 - 2014
Design / Surveying / Permitting

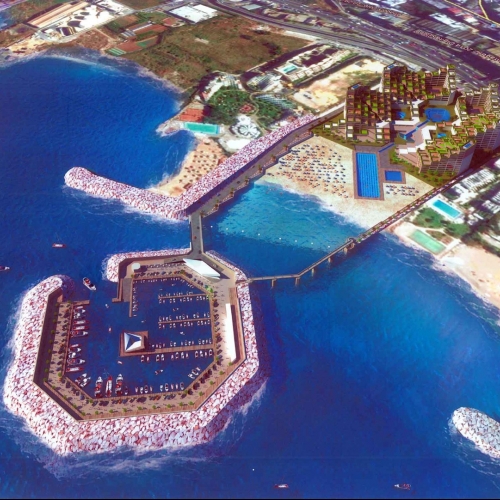

Galatea Marina

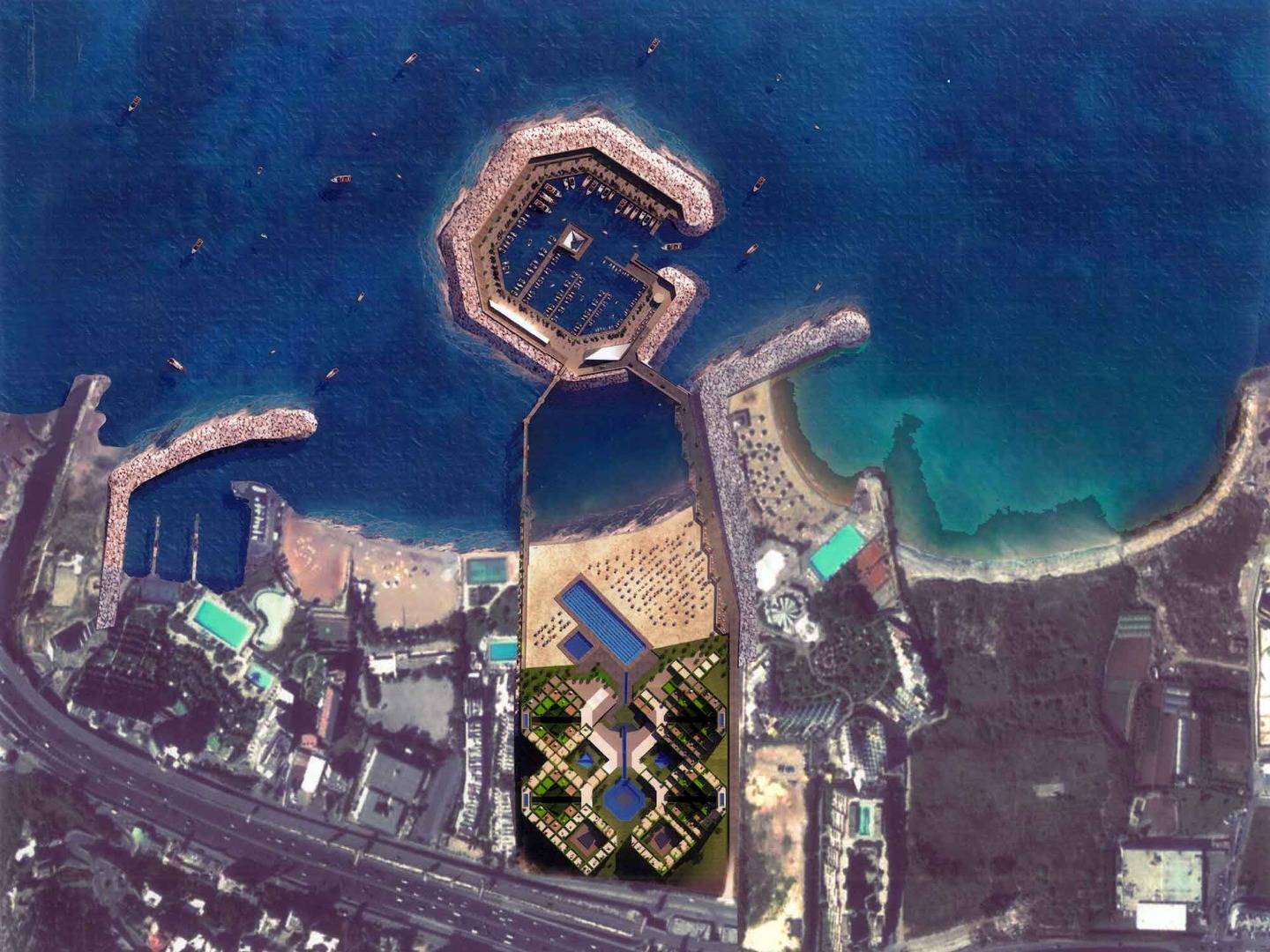

- Marina Master Plan
- Berthing capacity (125 yachts)
- Main Breakwater (Rubble mound type, L=568m @max -9.00m, core material, rocky filter and 16m3 concrete Accropodes blocks Type I)
- RC Crown walls
- Quaywalls (L=256m @-3.00m MSL) / Precast concrete blocks (Gravity QW)
- Quaywalls (L=200m @-4.50m MSL) / Precast concrete blocks (Gravity QW)
- Finger Pier (L=182m @-3.00m MSL, Nbr 3) / Precast concrete elements
- Slipway (Boat ramp)
- Marine accessories (Mooring bollards, fenders)
- Land reclamation and bituminous / RC Platforms
- RC and bituminous platforms
- Pedestrian access bridge (L=138m)
- Car access bridge (L=30m)
- Infrastructure (Electrical supply, pipes, manholes, lighting poles)
- Infrastructure (Water supply, Pumps, pipes, manholes, tanks)
- Marina master headquarter, restaurants, offices, shops (2,204m2)
- Fueling station
- Sandy beach stabilization (L=200m)
- Reclaimed area (60,281m2)
- Water body (27,289m2)

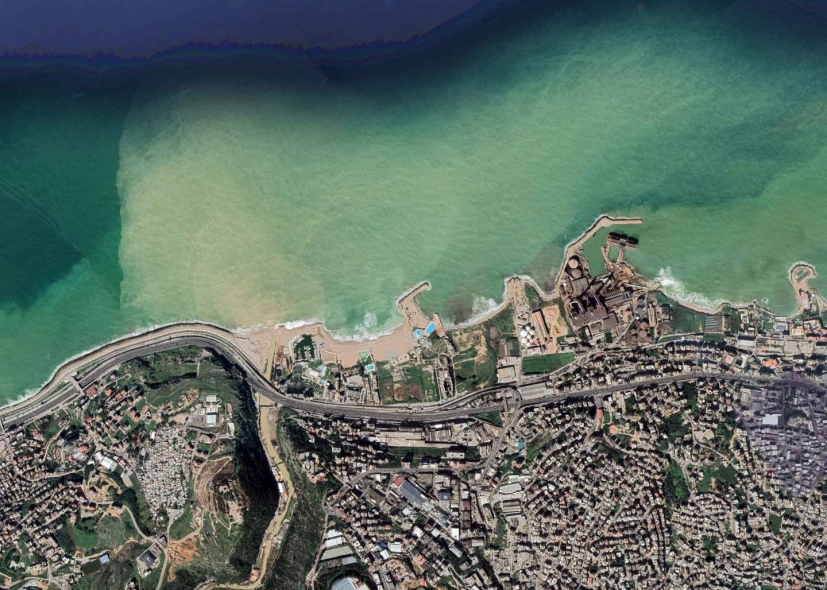

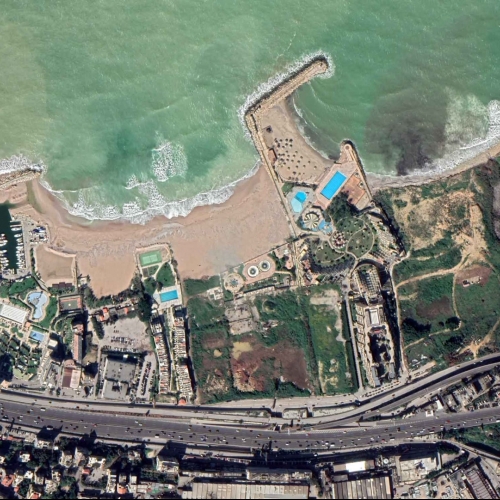

- Topographic survey (28,900m2)
- Bathymetric survey (377,400m2)
- Specifications / Drawings / BoQ / Permitting
