Year: 2014 - 2016 - 2017
Conceptual Design / Surveying

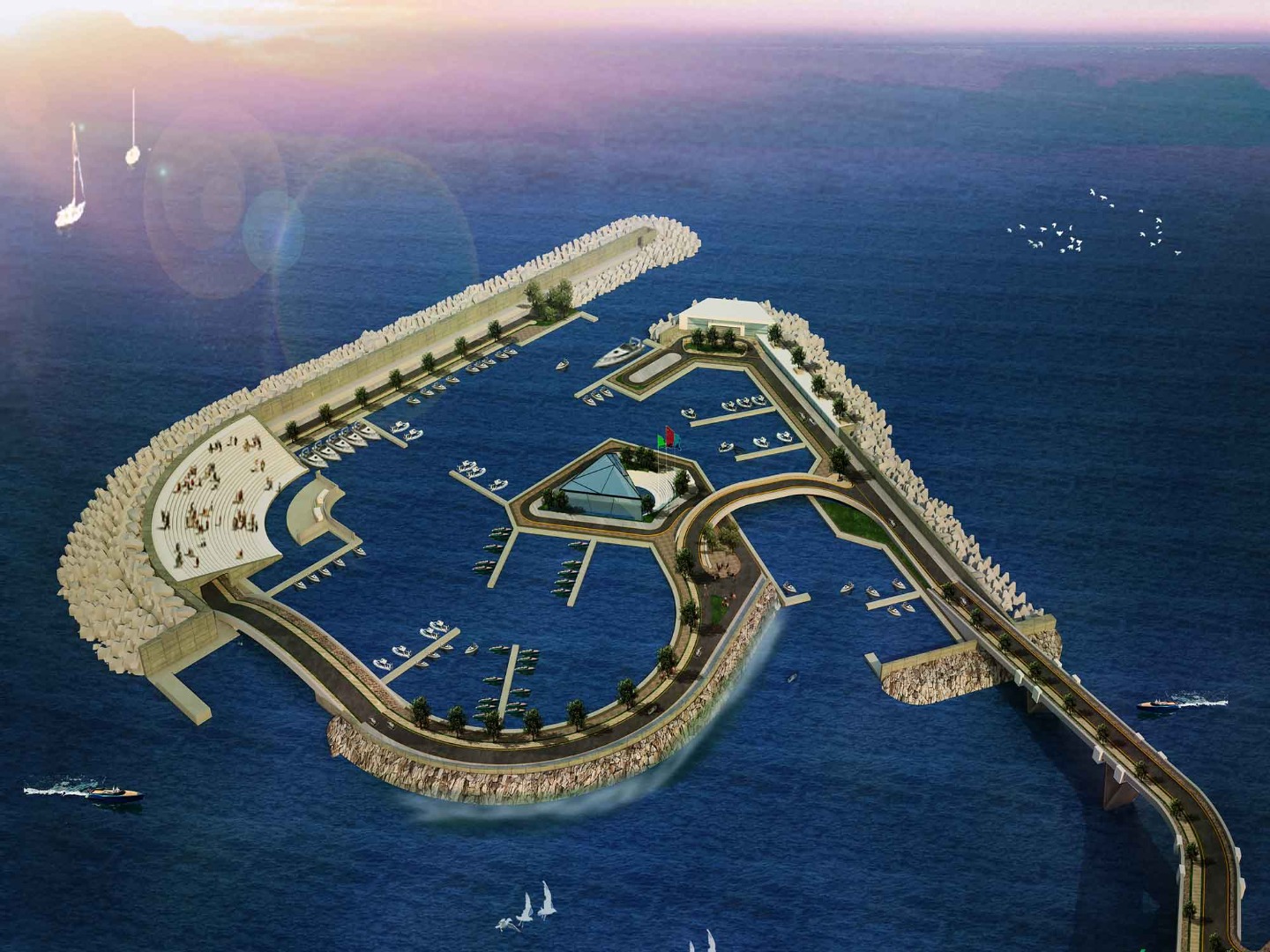

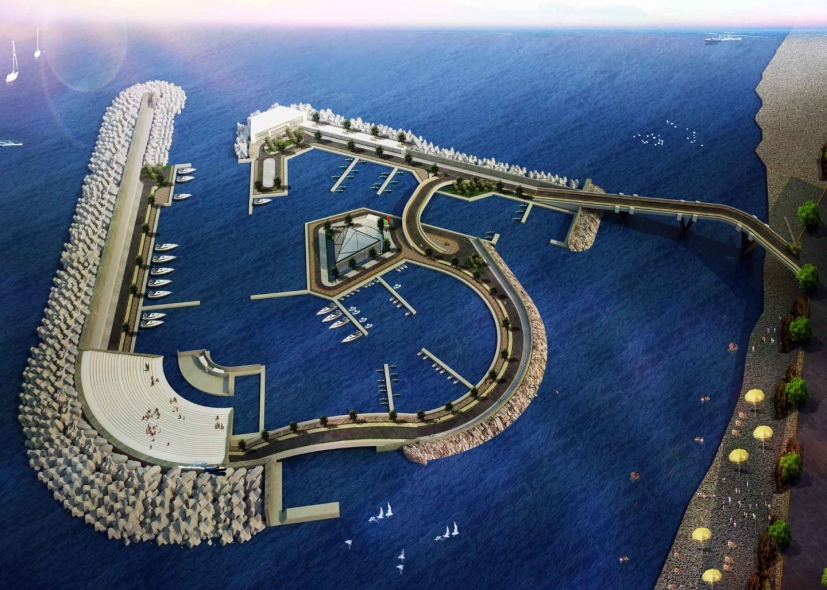

Byblos Marina
- Island marina linked to the shore by a bridge
- Marina Master Plan
- Berthing capacity (325 yachts)
- Access bridge (L=120m)
- Main Breakwater (Rubble mound type, L=560m @max -16.00m, core material, rocky filter and 16m3 concrete Accropodes blocks Type I)
- Secondary Breakwater (Rubble mound type, L=325m @max -12.00m, core material, rocky filter and 16m3 concrete Accropodes blocks Type I)
- RC Crown walls
- Quaywalls (L=170m @-2.50m MSL) / Precast concrete blocks (Gravity QW)
- Quaywalls (L=914m @-3.00m MSL) / Precast concrete blocks (Gravity QW)
- Finger Pier (L=40m @-4.50m MSL, Nbr 1) / Precast concrete elements
- Finger Piers (L=350m @-3.00m MSL, Nbr 9) / Precast concrete elements
- Slipway
- Asphalted and RC Platforms / Bicycle tracks / landscape
- Natural swimming area (pebbles beach)
- Marina master headquarter, restaurants, offices, shops, recreational facilities...
- Fueling station

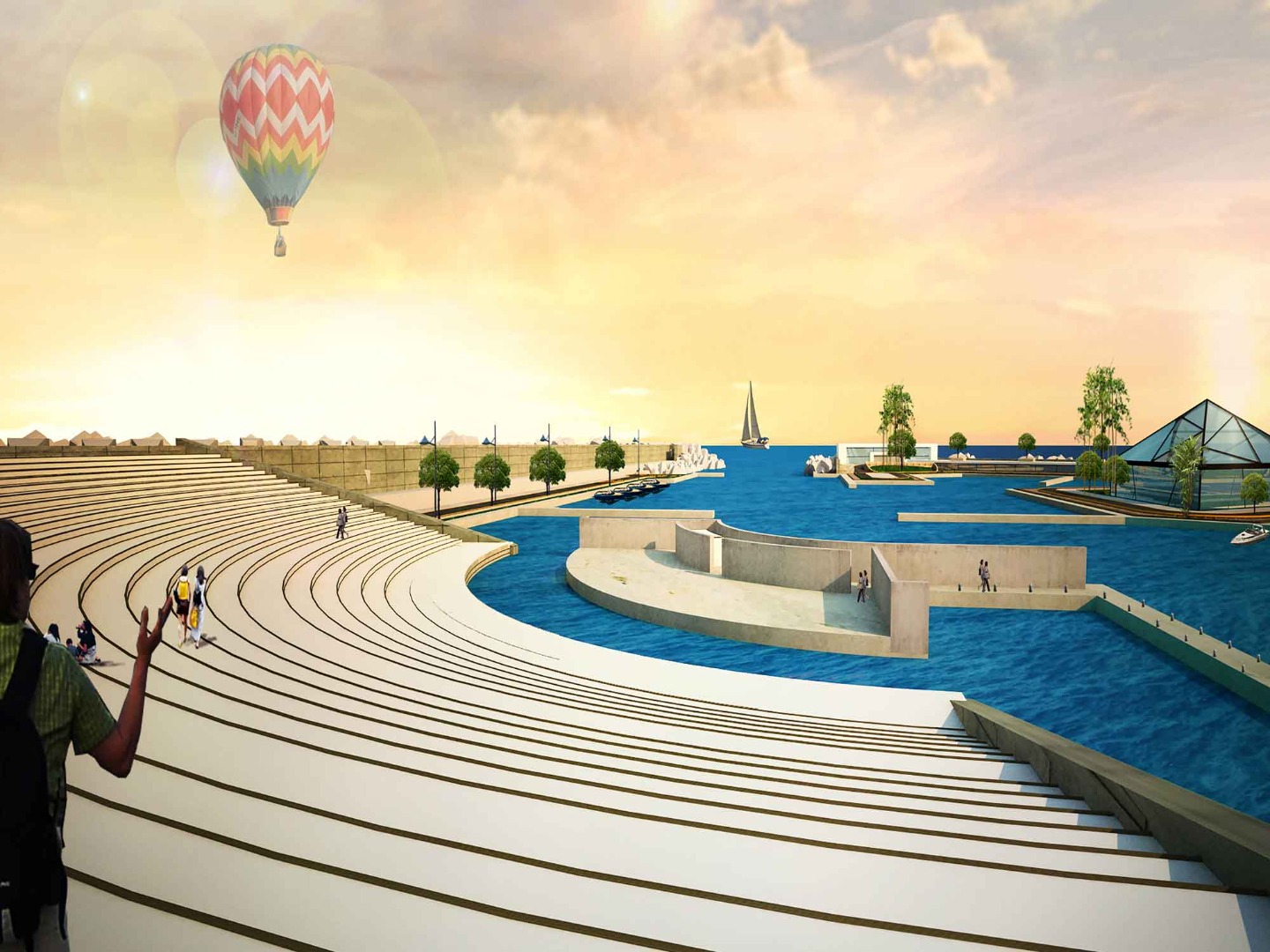

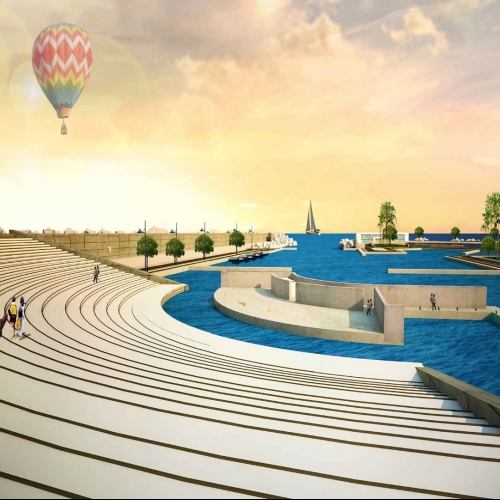

- Open air theater and bleachers (4,500m2)
- Reclaimed area (71,000m2)
- Water body (54,700m2)
- Topographic survey (15,000m2)
- Bathymetric survey (220,000m2)
- Drawings / BoQ
