Year: 2025
Design / surveying

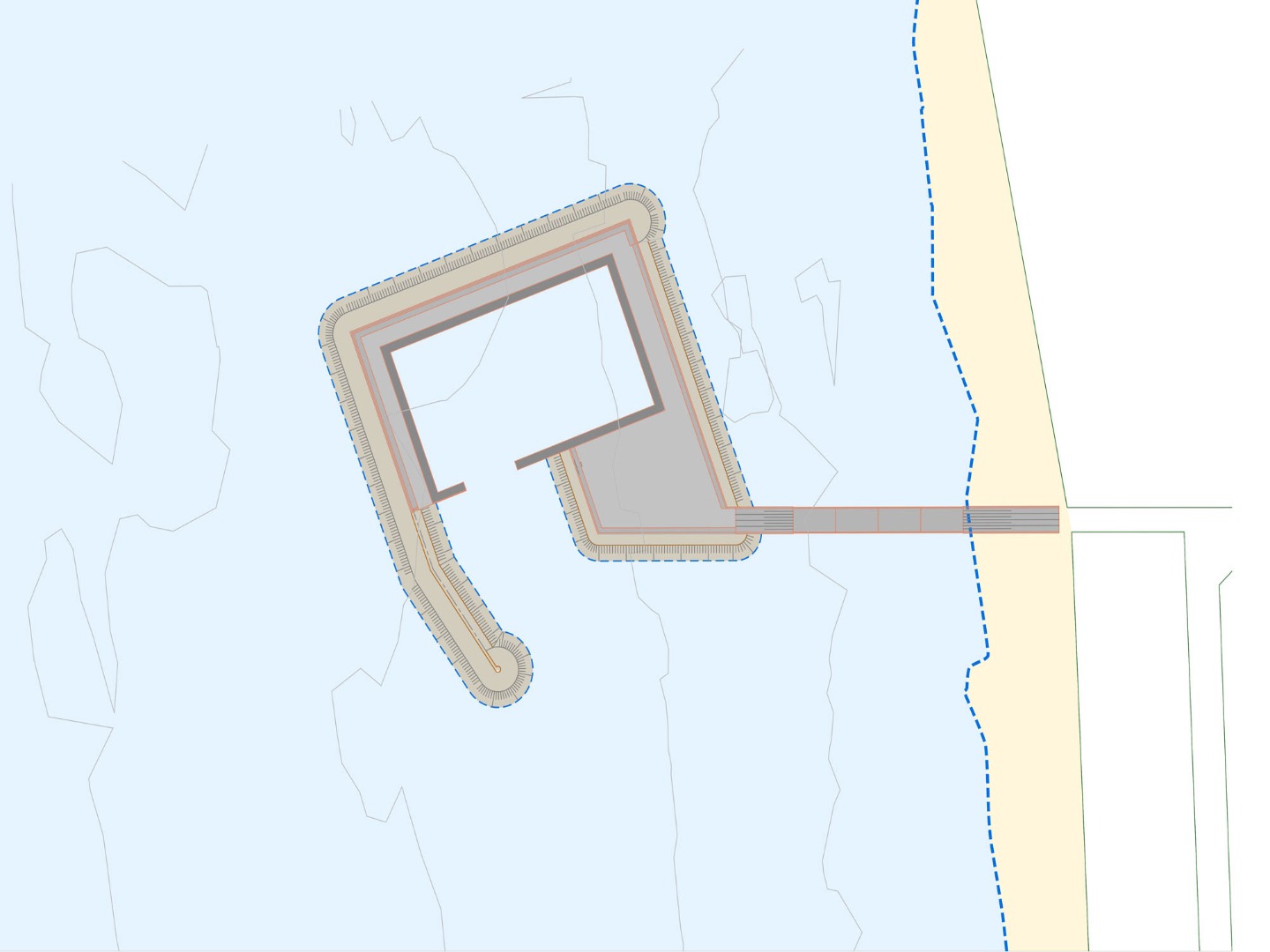

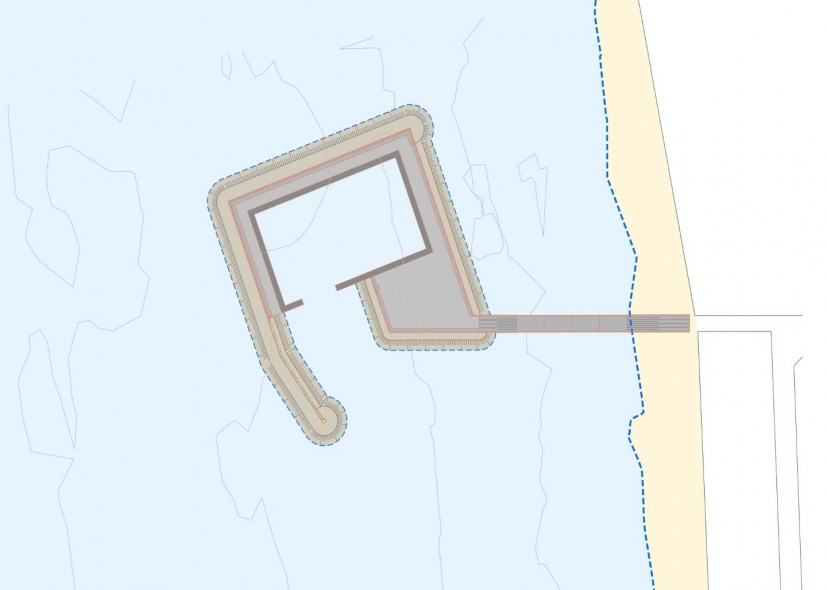

Arida Fishing Port Master Plan & Phase 1
- Master Plan
- Berthing capacity (90 boats)
- Main Breakwater (Rubble mound type, L=335m @max -3.50m MSL, 6m3 Accropodes blocks Type II Armor layer)
- Secondary Breakwater (Rubble mound type, L=80m @max -2.50m MSL with Rocky Armor layer)
- RC crown wall
- Quay walls (L=131m @-2.50m MSL) / Precast concrete blocks (Gravity QW)
- Quay walls (L=117m @-3.00m MSL) / Precast concrete blocks (Gravity QW)
- Access bridge (L~111m W~8.00m) with UWC foundations, Prestressed beams…
- RC platforms (1,300m2)
- Asphalted platforms (1,620m2)
- Dredging works for quay walls foundations, breakwater toe, basin and access channel up to -2.50m and -3.00m MSL
- RC retaining sea walls
- Marine accessories (Mooring bollards, fenders)
- Infrastructure (Electrical supply, pipes, lighting poles)
- Infrastructure (Water supply, Pumps, pipes, tanks)
- Fishermen rooms (130m2)
- Fish market (213m2)
 -Waste water treatment plant
- Reclaimed area (10,160m2)
- Basin (4,225m2)
- Topographic survey (9,360m2)
- Bathymetric survey (118,000m2)

Phase 1 of Works
- Tender Documents / Drawings / BoQ, incl. all maritime infrastructure, access bridge, dredging works, excl, quay walls, platforms finishes and buildings
