Year: 2010
Design / Surveying / Permitting

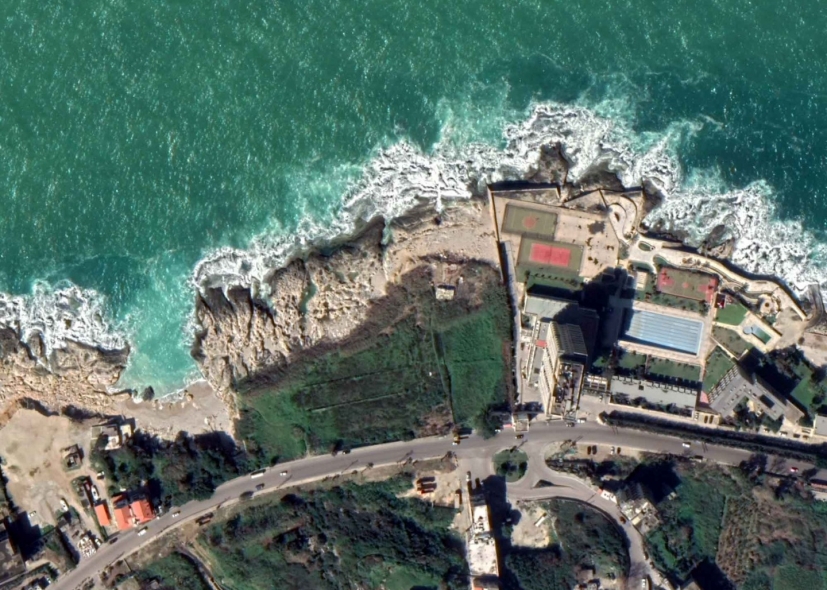

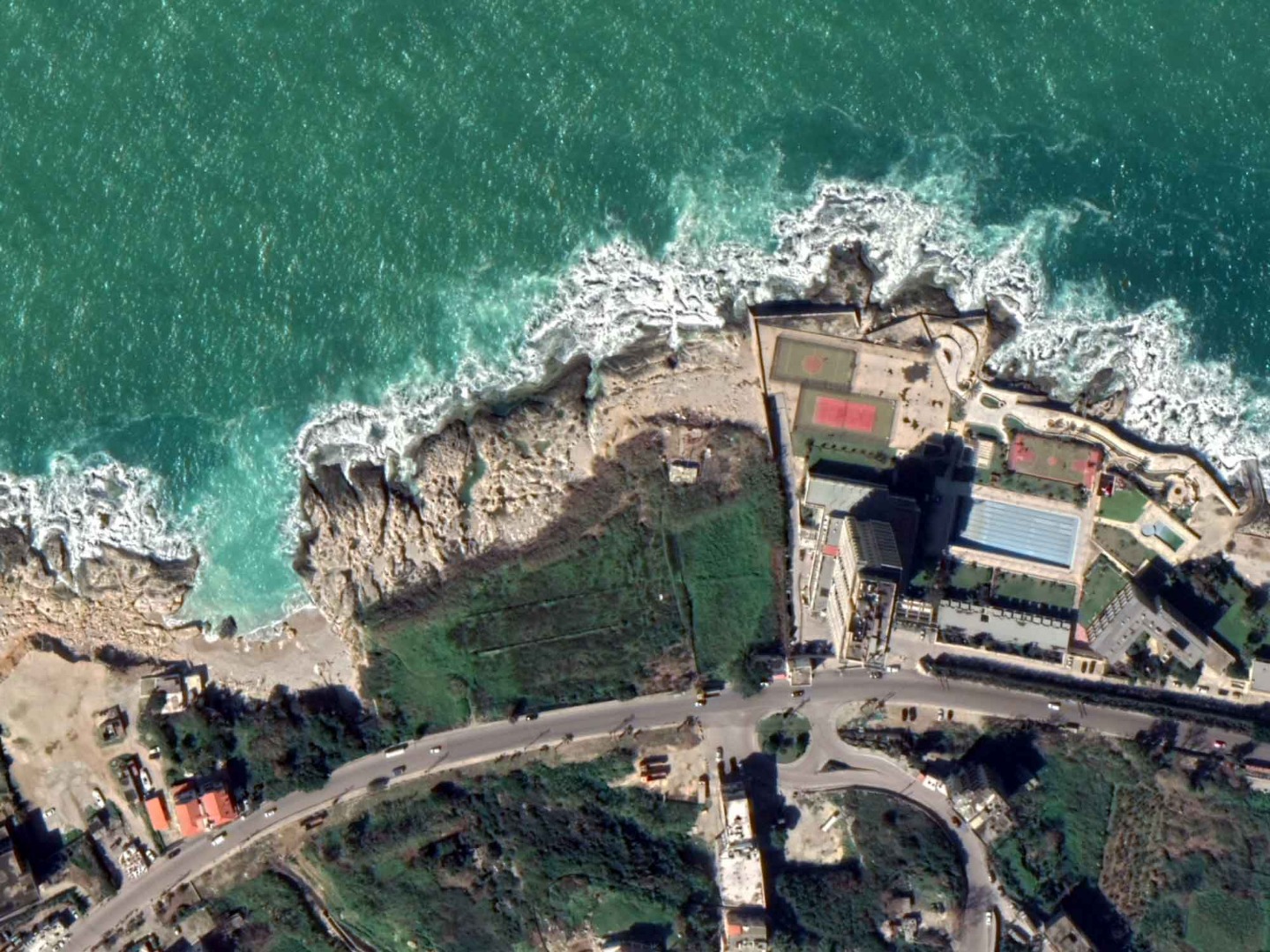

Safra Marina
- Marina Master Plan
- Berthing capacity (75 yachts)
- Main Breakwater (Rubble mound type, L=208m @max -11.00m, core material, rocky filter and 16m3 concrete Accropodes blocks Type I)
- RC Crown walls
- Quaywalls (L=190m @-4.00m MSL) / Underwater concrete (Gravity QW)
- Quaywalls (L=53m @-5.00m MSL) / Underwater concrete (Gravity QW)
- Finger Pier (L=34m @-4.00m MSL, Nbr 1) / Underwater concrete blocks
- Marine accessories (Mooring bollards, fenders)
- Land reclamation and bituminous / RC Platforms
- Swimming area (1,680m2)
- Infrastructure (Electrical supply, pipes, manholes, lighting poles)
- Infrastructure (Water supply, Pumps, pipes, manholes, tanks)
- Marina master headquarter, restaurants, offices, shops (1,287m2)
- Fueling station
- Reclaimed area (19,658m2)
- Water body (6,122m2)
- Topographic survey (12,000m2)
- Bathymetric survey (85,000m2)
- Specifications / Drawings / BoQ / Permitting
