Year: 2010 - 2011
Design / Surveying / Permitting

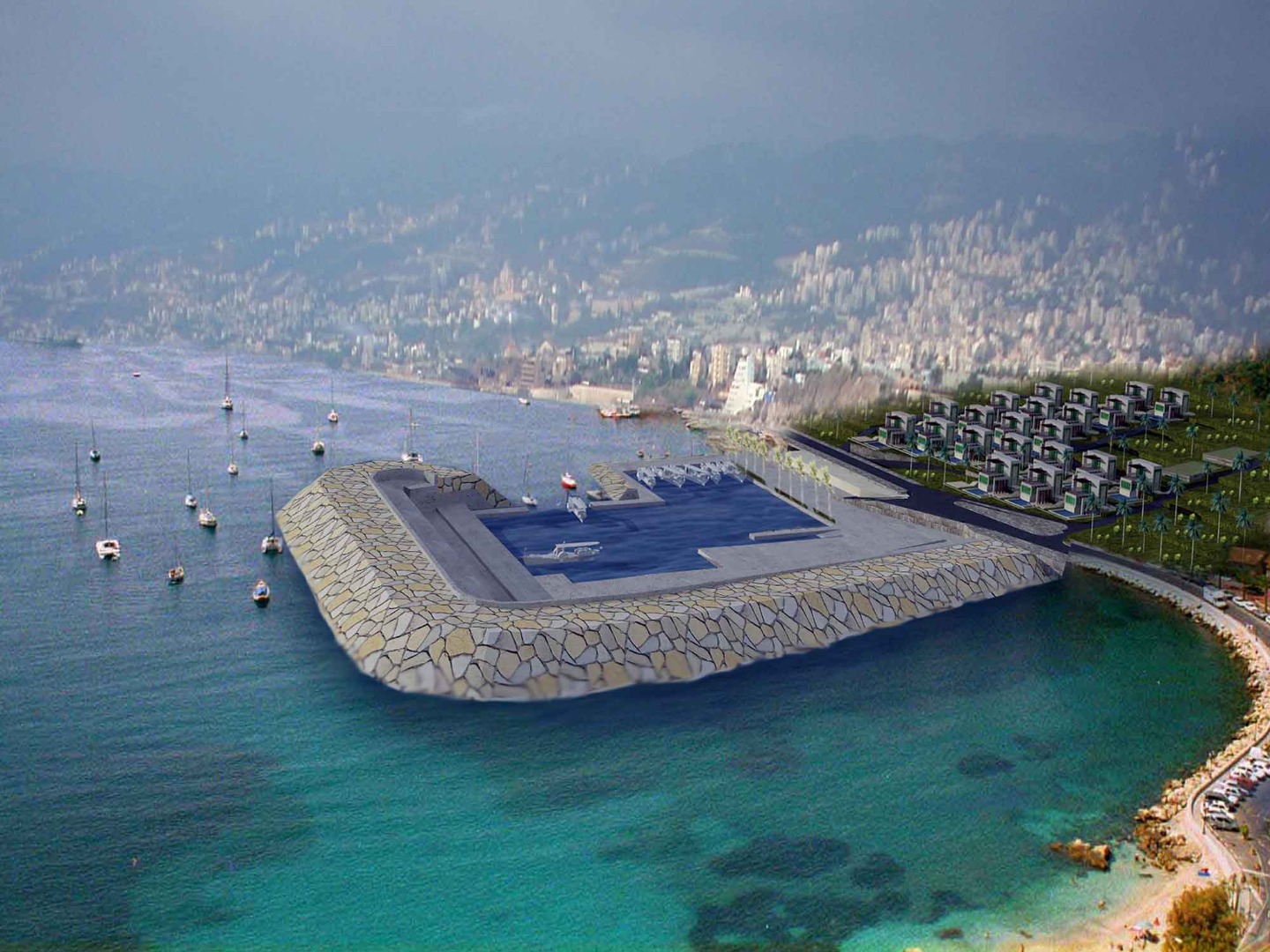

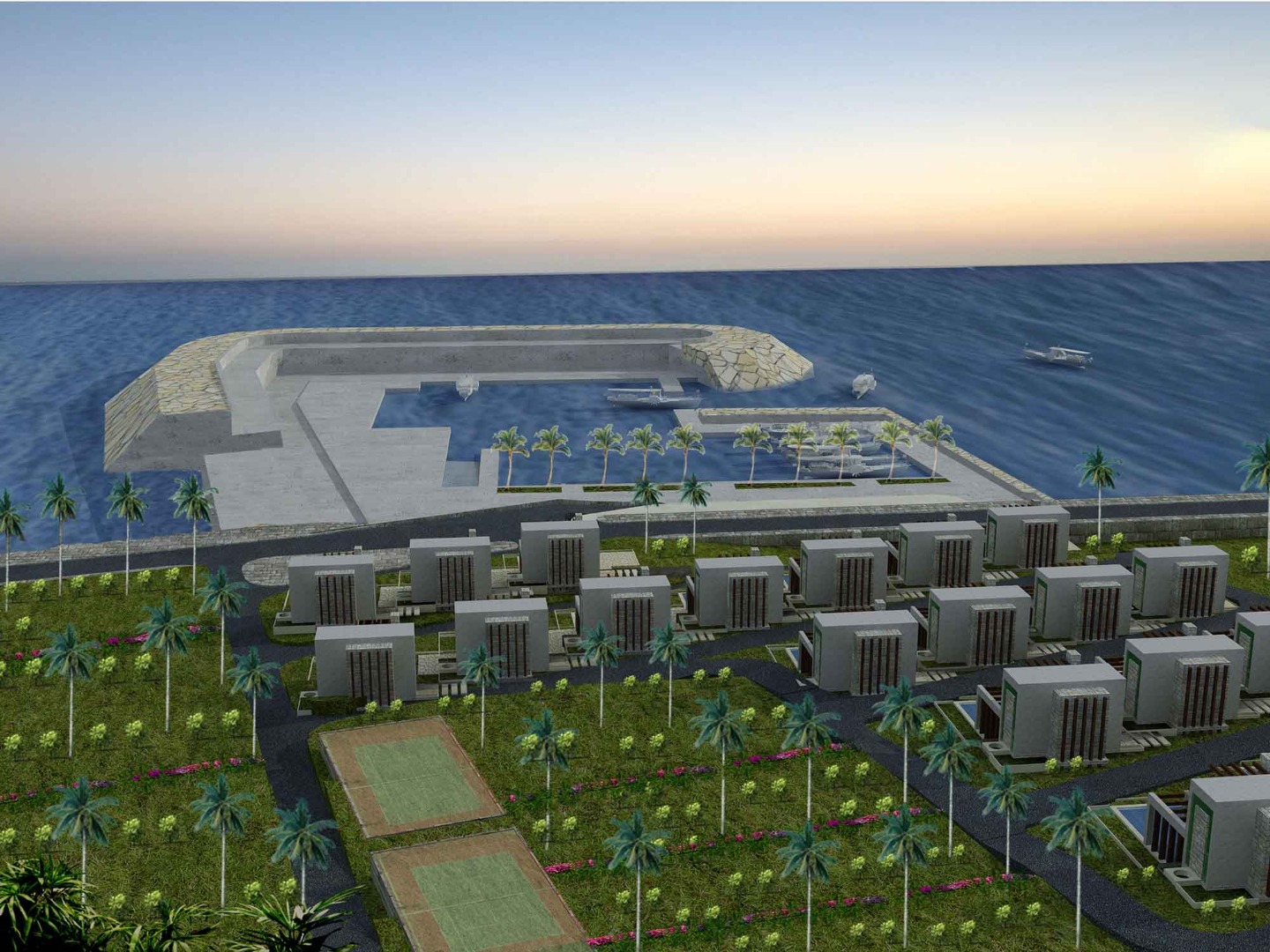

Marina 383
- Marina layout
- Berthing capacity (65 yachts)
- Main Breakwater (Rubble mound type, L=168m @max -13.00m, core material, rocky filter and 18m3 concrete Accropodes blocks Type 1 for armor layer)
- RC Crown walls
- Quaywalls (L=212m @-3.00m MSL) / Precast concrete blocks (Gravity QW)
- Quaywalls (L=93m @-4.00m MSL) / Precast concrete blocks (Gravity QW)
- Marine accessories (Mooring bollards, fenders)
- Land reclamation and bituminous / RC Platforms
- Slipway (Boat ramp / L=29.50m)
- Infrastructure (Electrical supply, pipes, manholes, lighting poles)
- Infrastructure (Water supply, Pumps, pipes, manholes, tanks)
- Marina master headquarter, restaurants, offices, shops (375m2)
- Fueling station
- Reclaimed area (13,280m2)
- Water body (6,347m2)
- Dredging works for basin, quaywalls foundations and breakwater toe

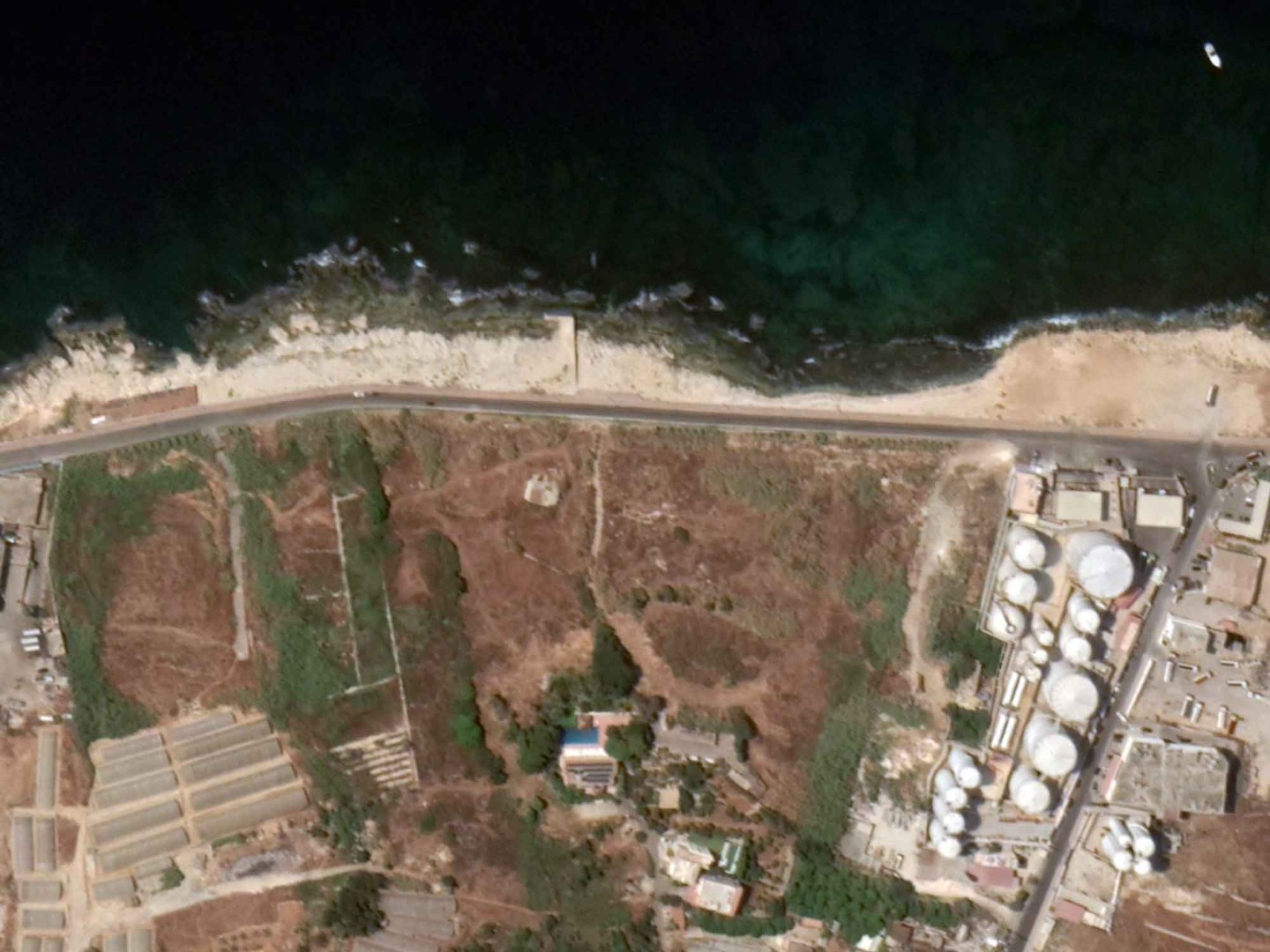

- Topographic survey (12,800m2)
- Bathymetric survey (41,500m2)
- Tender Documents / Specifications / Drawings / BoQ / Permitting
